JK-HSD57 Closed Loop Stepper Motor Driver , 48VDC 10A Nema 23 Stepper Driver

20V ~ 50VDC 0.1A - 10A NEMA23 Closed Loop Stepper Motor Driver JK-HSD57

Features of closed loop stepper motor

• Step and direction control
• Closed position loop for no loss of movement synchronization
• Operating voltage: 20-50 VDC
• Load based output current of 0.1 - 10 A
• High torque at starting and low speed
• No torque reservation
• High stiffness at standstill
• Significantly reduced motor heating
• Smooth motor movement and extra low motor noise
• Quick response, no delay and zero settling time
• No loss of steps; no hunting; no overshooting
• Plug-and-play and no tuning

Descriptions of NEMA23 stepper driver

• JK-HSD57 is one of the models in Jkongmotor series easy servo drives which can take 20-50 VDC operating voltage and output 0.1 -10A continuous load-based current. It is capable of driving NEMA 17, 23, 24 and 34 easy servomotors (stepper motors with encoders) with the position loop closed in real time.
• Based on latest DSP technology and adopting Novo's advanced control algorithm, JK-HSD57 easy servo drive applies servo control on easy servo motors. When adopted with an easy servo motor, it combines features of both open loop steppers & brushless servo systems, and offers many unique advances features for excellent motion control system performance.
• When an JK-HSD57 easy servo drive is implemented with a novo SC series easy servo motor, there is No Configuration Needed for almost all applications. The output resolution from JK-HSD57 with the output resolution defaulted to output resolution of 2,000 pulses per resolution (equal to 10 microstep in 2-phase stepper systems). Via DIP switches, a user can also easily change the output resolution to one of 15 output resolutions 400 to 51,200 (equal to 2-256 microstep in 2-phase stepper systems). With novo configuration software, ProTuner, an advanced user can also set custom settings of resolution, current & position loop parameters, idle current percentage, etc.

Applications

With many unique advanced features, JK-HSD57 easy servo systems are ideal for many industries to upgrade stepper performance or replace brushless servo systems in many applications.

Jkongmotor OEM clients have successfully implemented JK-HSD57 driven easy servo systems in applications such as small-to-large size CNC routers, CNC mills, plasmas, large-scale laser cutters / engravers, labeling equipments,robotics, gemstone processing machines, pick & place machines, X-Y tables.

Electrical Specifications

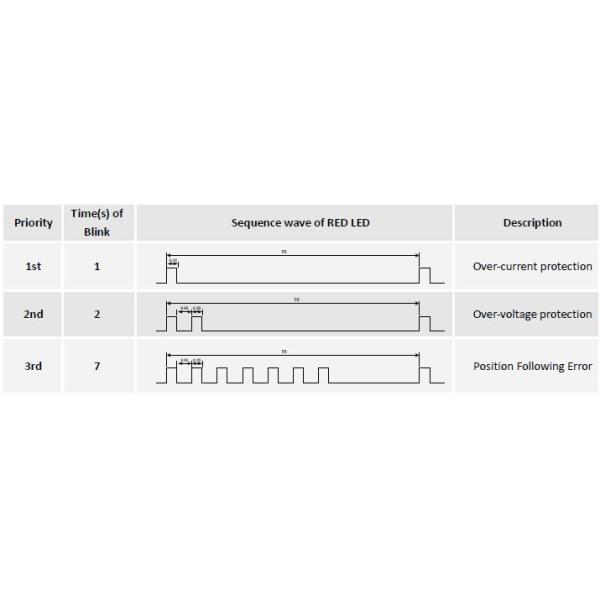

Protection Indications

The green indicator turns on when power-up. When drive protection is activated, the red LED blinks periodicity to indicate the error type.

Microstep Resolution (SW1-SW4)
